Shredders - Chippers
They shred both small and large amounts of vegetable waste from green areas,
thus reducing the waste volume to transport it more easily and to obtain excellent compost or wood chips.

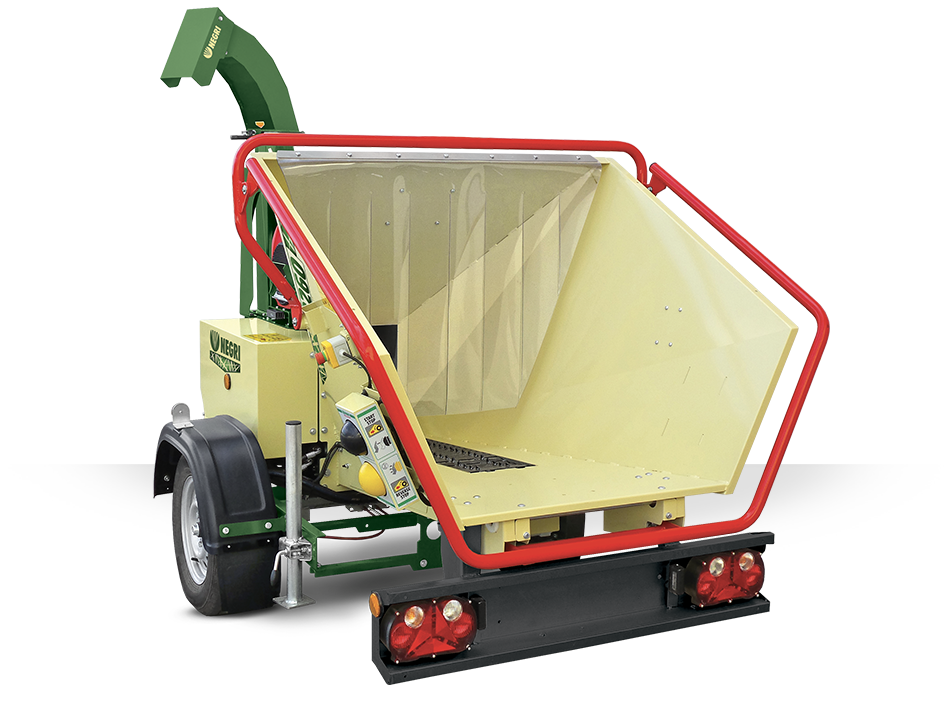

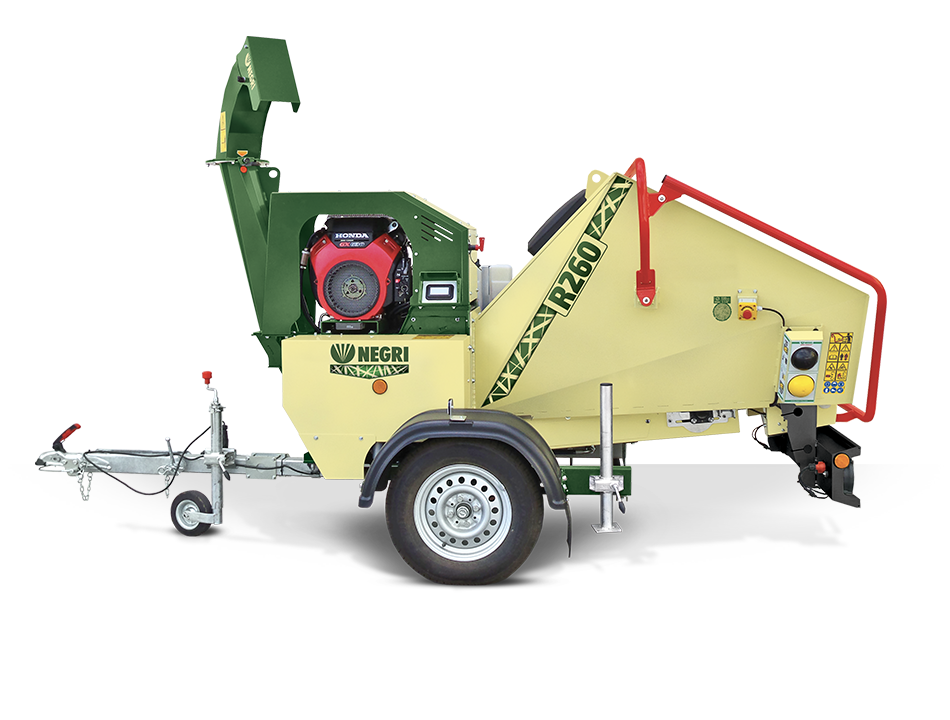

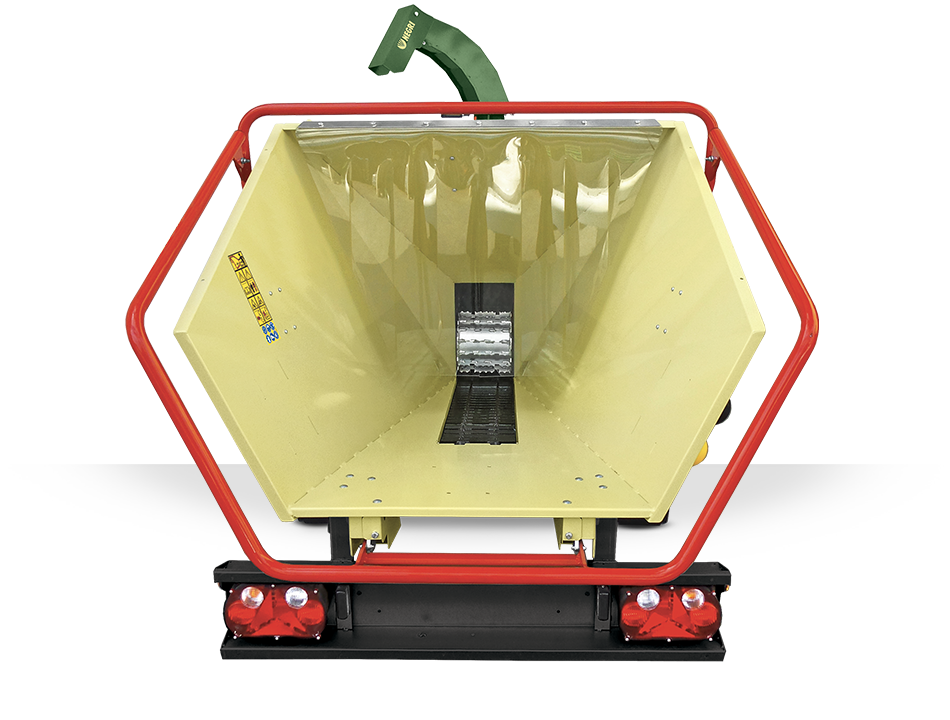

VERSION | R260BH21OTRGN
Hourly capacity
10 - 14
m³/h*
![Image R260BH21OTRGN](https://negri-bio.com:443/data/images/TRML00000000R260/negri-bio-trituratori-R260BH21OTRGN-1.png)
![Image R260BH21OTRGN](https://negri-bio.com:443/data/images/TRML00000000R260/negri-bio-trituratori-R260BH21OTRGN-2.png)
![Image R260BH21OTRGN](https://negri-bio.com:443/data/images/TRML00000000R260/negri-bio-trituratori-R260BH21OTRGN-3.png)
Basic equipment
![](https://negri-bio.com:443/data/images/TRML00000000R260/negri-bio-R260-allestimento-rotore.png)
ROTOR | Blades + Hammers
![](https://negri-bio.com:443/data/images/TRML00000000R260/negri-bio-R260-allestimento-utensili-l.png)
Sharpenable blades (hardened steel)
![](https://negri-bio.com:443/data/images/TRML00000000R260/negri-bio-R260-allestimento-utensili-m.png)
Mobile reversible hammers (hardened steel)
![](https://negri-bio.com:443/data/images/TRML00000000R260/negri-bio-R260-allestimento-vaglio.png)
Fixed removable refining screen
![](https://negri-bio.com:443/data/images/TRML00000000R260/negri-bio-R260-allestimento-rullo.png)
Hydraulic feeding roller with adjustable speed and rotation direction
![](https://negri-bio.com:443/data/images/TRML00000000R260/negri-bio-R260-allestimento-tappeto-alimentazione.png)
Feeding conveyor belt in steel with adjustable speed and rotation direction
![](https://negri-bio.com:443/data/images/TRML00000000R260/negri-bio-R260-allestimento-tubo-lancio.png)
Rotary ejection pipe with adjustable discharge distance
![](https://negri-bio.com:443/data/images/TRML00000000R260/negri-bio-R260-allestimento-tramoggia.png)
Large and handy hopper
![](https://negri-bio.com:443/data/images/TRML00000000R260/negri-bio-R260-allestimento-lubrificazione.png)
Lubrication system for bearings
![](https://negri-bio.com:443/data/images/TRML00000000R260/negri-bio-R260-allestimento-multifunzione.png)
OBS - On Board System (Multifunctional control system with Nostress)
![](https://negri-bio.com:443/data/images/TRML00000000R260/negri-bio-R260-allestimento-trasmissione-cinghie.png)
Belt transmission with hydrodynamic joint
![](https://negri-bio.com:443/data/images/TRML00000000R260/negri-bio-R260-allestimento-carrello-timoneR-giunto.png)
Homologated road trailer + Adjustable drawbar with ball hitch coupling
![](https://negri-bio.com:443/data/images/TRML00000000R260/negri-bio-motore-Honda-GX630.png)
HONDA GX630
![](https://negri-bio.com:443/data/images/TRML00000000R260/negri-bio-motore-Honda-GX630-avviamento.png)
Electric start
![](https://negri-bio.com:443/data/images/TRML00000000R260/negri-bio-R260-accessori-tubo-prolunga.png)
Ejection pipe extension (400 mm)
Cutting system | ||
---|---|---|
Blades (hardened steel) | N° | 2 |
Hammers (hardened steel) | N° | 20 |
Counter-blade | N° | 1 |
Features | ||
Hourly capacity | m³/h* | 10 - 14 |
Throat opening | mm | 230 x 130 |
To shred - Ø max.* | mm | 130 |
Motive power | ||
Power | hp/kW | 21 / 15,5 |
Power source | Petrol | |
Engine/motor | HONDA GX630 | |
Fuel consumption | liters/h | 4,8 |
Specifications | ||
Length | mm | 3580 |
Width | mm | 1420 |
Height | mm | 2085 |
Discharge height | mm | 2085 |
Introduction height | mm | 700 |
Hopper size | mm | 1180 x 830 |
Weight: NET | kg | 670 |
* Input material - Data depending on the kind of material and working conditions.
TERMS | ||
---|---|---|
Product origin | Made in Italy | |
Warranty | 2 years for EU countries / 1 year for non-EU countries - from invoice date | |
Delivery - Original spare parts | Usually available, 45 days max. (from order date) | |
Identification - SCIP number (link) | https://echa.europa.eu/it/scip-database Instructions -SIP number (PDF) |
The products are subject to technical evolution and this website may not be fully updated.
The data in the tables, the photos and pictures have to be considered informative and not binding.
