Shredders - Chippers
They shred both small and large amounts of vegetable waste from green areas,
thus reducing the waste volume to transport it more easily and to obtain excellent compost or wood chips.

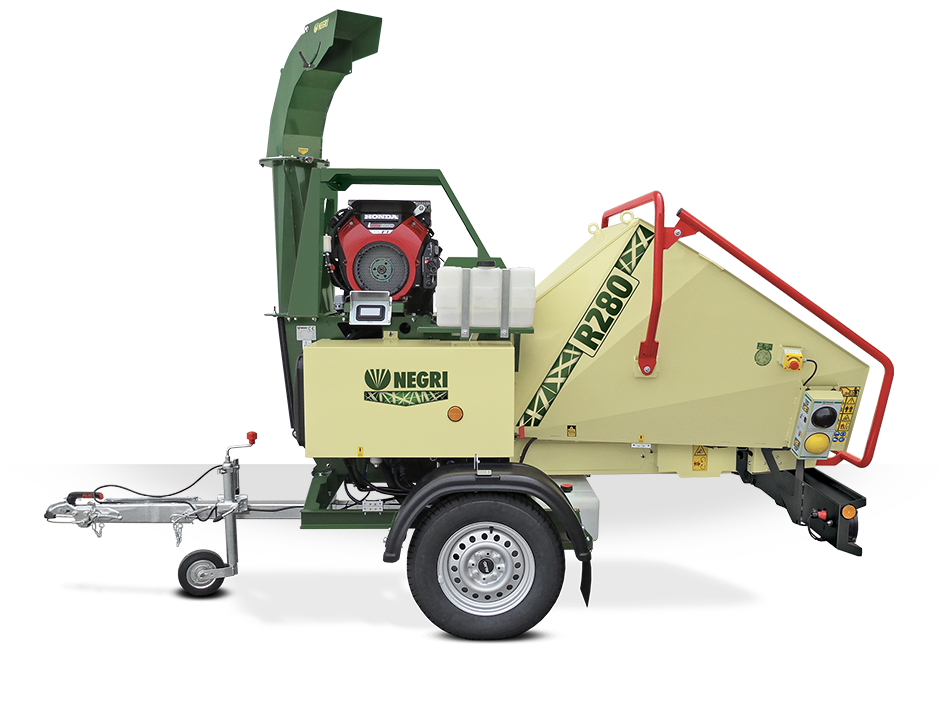

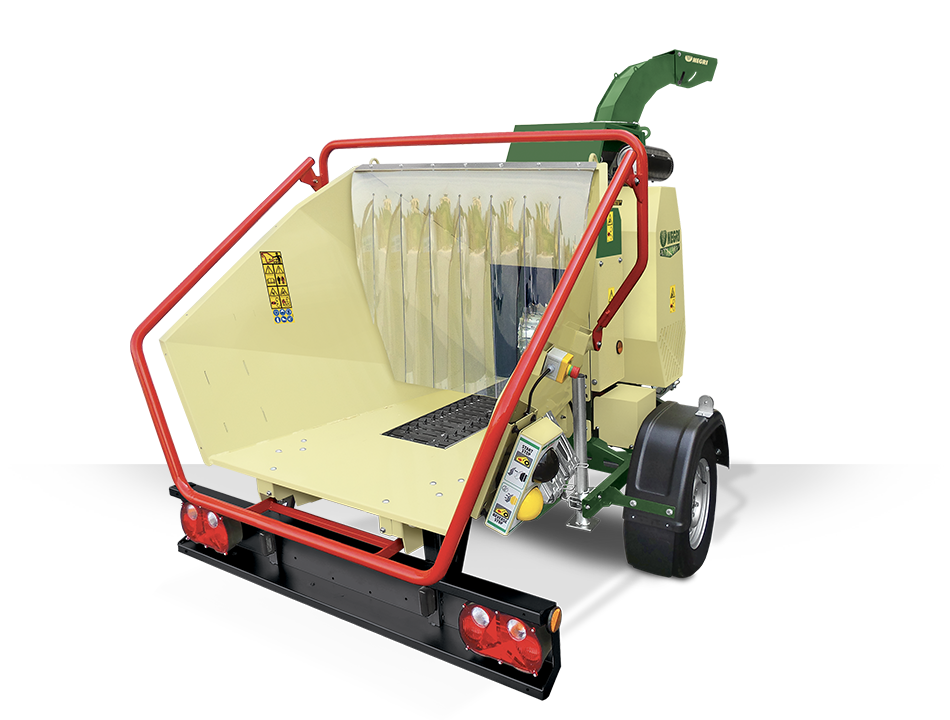

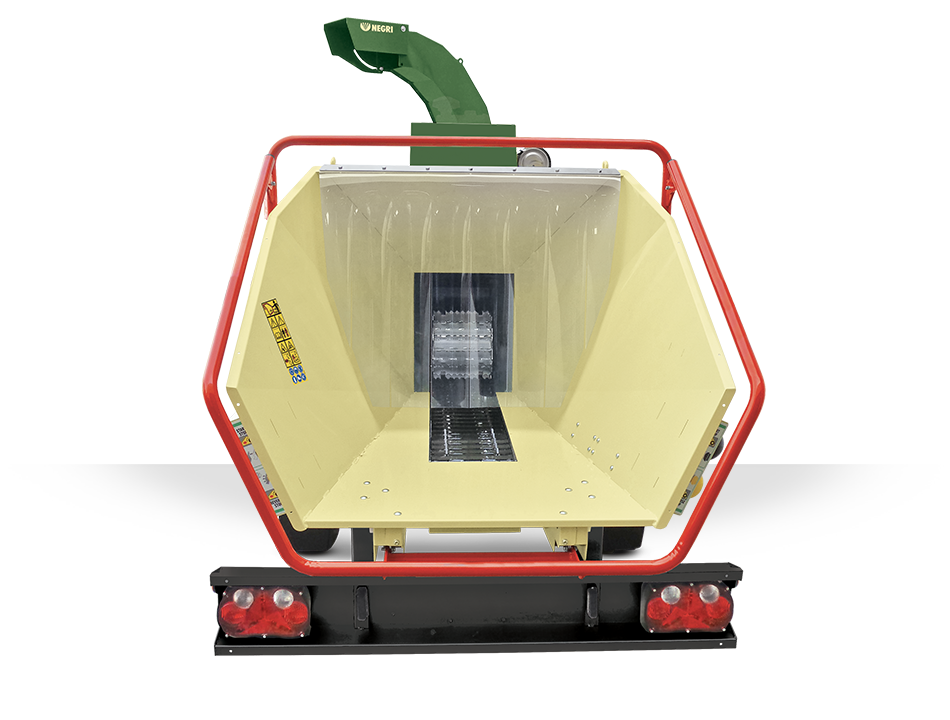

VERSION | R280BH25OTRGN
Hourly capacity
13 - 18
m³/h*
![Image R280BH25OTRGN](https://negri-bio.com:443/data/images/TRML00000000R280/negri-bio-trituratori-R280BH25OTRGN-1.png)
![Image R280BH25OTRGN](https://negri-bio.com:443/data/images/TRML00000000R280/negri-bio-trituratori-R280BH25OTRGN-2.png)
![Image R280BH25OTRGN](https://negri-bio.com:443/data/images/TRML00000000R280/negri-bio-trituratori-R280BH25OTRGN-3.png)
Basic equipment
![](https://negri-bio.com:443/data/images/TRML00000000R280/negri-bio-R280-allestimento-rotore.png)
ROTOR | Blades + Hammers
Suitable for shredding wood, even damp and fibrous - typical of bio-shredders.
![](https://negri-bio.com:443/data/images/TRML00000000R280/negri-bio-R280-allestimento-utensili-l.png)
Sharpenable blades (hardened steel)
![](https://negri-bio.com:443/data/images/TRML00000000R280/negri-bio-R280-allestimento-utensili-m.png)
Mobile reversible hammers (hardened steel)
![](https://negri-bio.com:443/data/images/TRML00000000R280/negri-bio-R280-allestimento-vaglio.png)
Fixed removable refining screen
![](https://negri-bio.com:443/data/images/TRML00000000R280/negri-bio-R280-allestimento-rullo.png)
Hydraulic feeding roller with adjustable speed and rotation direction
![](https://negri-bio.com:443/data/images/TRML00000000R280/negri-bio-R280-allestimento-tappeto-alimentazione.png)
Feeding conveyor belt in steel with adjustable speed and rotation direction
![](https://negri-bio.com:443/data/images/TRML00000000R280/negri-bio-R280-allestimento-tubo-lancio.png)
Rotary ejection pipe with adjustable discharge distance
![](https://negri-bio.com:443/data/images/TRML00000000R280/negri-bio-R280-allestimento-tramoggia.png)
Large and handy hopper
![](https://negri-bio.com:443/data/images/TRML00000000R280/negri-bio-R280-allestimento-lubrificazione.png)
Lubrication system for bearings
![](https://negri-bio.com:443/data/images/TRML00000000R280/negri-bio-R280-allestimento-multifunzione.png)
OBS - On Board System (Multifunctional control system with Nostress)
![](https://negri-bio.com:443/data/images/TRML00000000R280/negri-bio-R280-allestimento-trasmissione-cinghie.png)
Belt transmission with hydrodynamic joint
![](https://negri-bio.com:443/data/images/TRML00000000R280/negri-bio-R280-allestimento-carrello-timoneR-giunto.png)
Homologated road trailer + Adjustable drawbar with ball hitch coupling
![](https://negri-bio.com:443/data/images/TRML00000000R280/negri-bio-motore-Honda-iGX800.png)
HONDA iGX800
![](https://negri-bio.com:443/data/images/TRML00000000R280/negri-bio-motore-Honda-iGX80-avviamento.png)
Electric start
![](https://negri-bio.com:443/data/images/TRML00000000R280/negri-bio-R280-accessori-tubo-prolunga.png)
Ejection pipe extension (400 mm)
Cutting system | ||
---|---|---|
Blades (hardened steel) | N° | 2 |
Hammers (hardened steel) | N° | 24 |
Counter-blade | N° | 1 |
Features | ||
Hourly capacity | m³/h* | 13 - 18 |
Throat opening | mm | 270 x 150 |
To shred - Ø max.* | mm | 150 |
Motive power | ||
Power | hp/kW | 25 / 18,4 |
Power source | Petrol | |
Engine/motor | HONDA iGX800 | |
Fuel consumption | liters/h | 5,5 |
Specifications | ||
Length | mm | 3470 |
Width | mm | 1470 |
Height | mm | 2280 |
Discharge height | mm | 2280 |
Introduction height | mm | 700 |
Hopper size | mm | 1205 x 870 |
Weight: NET | kg | 700 |
TERMS | ||
---|---|---|
Product origin | Made in Italy | |
Warranty | 2 years for EU countries / 1 year for non-EU countries - from invoice date | |
Delivery - Original spare parts | Usually available, 45 days max. (from order date) | |
Identification - SCIP number (link) | https://echa.europa.eu/it/scip-database Instructions -SIP number (PDF) |
The data in the tables, the photos and pictures have to be considered informative and not binding.
