Trituratori - Cippatori
Sminuzzano sia piccole che grandi potature di aree verdi,
diminuendone il volume per facilitarne il trasporto e ottenere ottimo compost o cippato.

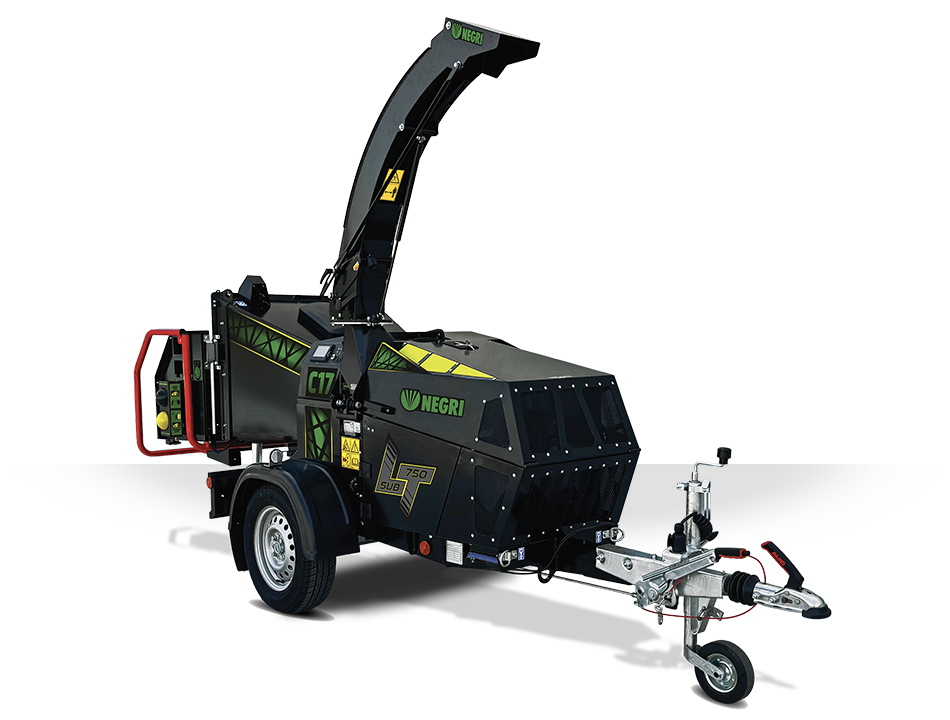

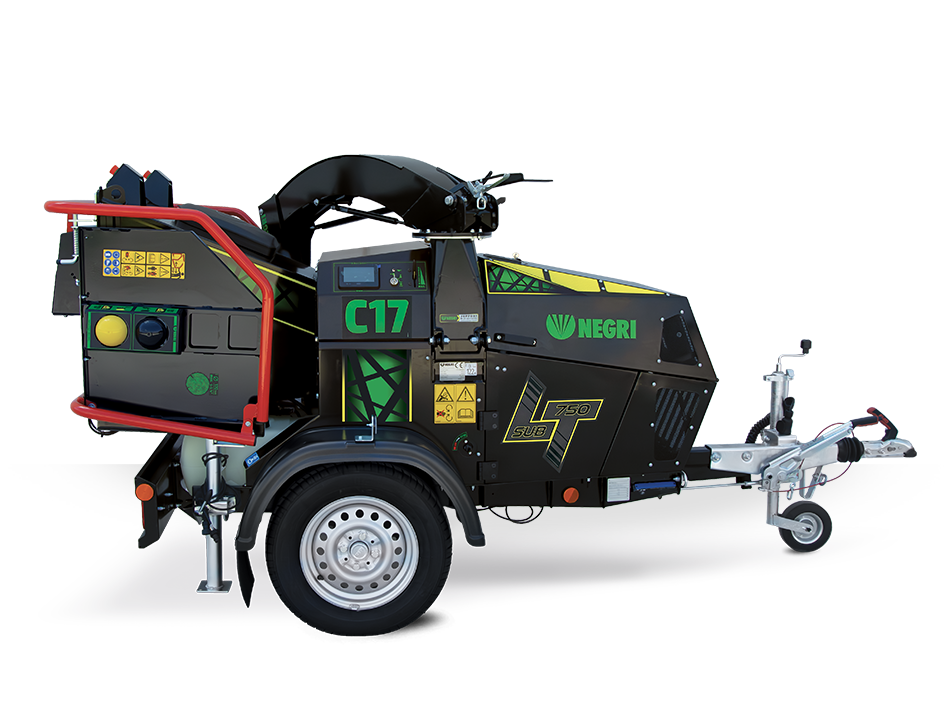

VERSION | C17LTBB40ON
Hourly capacity
7,5
t/h*
1
Counter-blade
Basic equipment
DISC | Blades+Counter-blade
Adjustable sharpenable blades (hardened steel)
Fixed counter-blade (hardened steel)
Hydraulic feeding rollers with adjustable speed and rotation direction
Folding, rotary ejection pipe with adjustable discharge distance

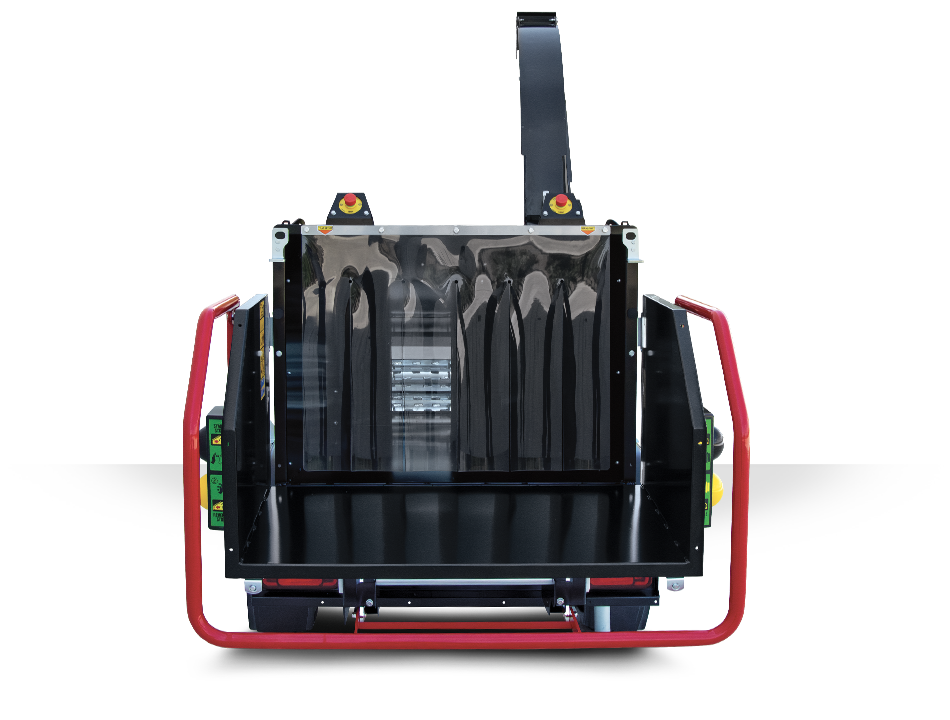

Folding, large and handy hopper
Lubrication system for bearings
OBS - On Board System (Multifunctional control system with Nostress)
Belt transmission
Homologated road trailer + Fixed drawbar with ball hitch coupling
BRIGGS & STRATTON VANGUARD EFI40
Electric start
| Cutting system | ||
|---|---|---|
| Blades (hardened steel) | N° | 2 |
| Hammers (hardened steel) | N° | / |
| Counter-blade | N° | 1 |
| Features | ||
| Hourly capacity | t/h* | 7,5 |
| Throat opening | mm | 210 x 170 |
| To shred - Ø max.* | mm | 170 |
| Motive power | ||
| Power | hp/kW | 40 / 29,9 |
| Power source | Petrol | |
| Engine/motor | BRIGGS & STRATTON VANGUARD EFI40 | |
| Fuel consumption | liters/h | 5,5 |
| Specifications | ||
| Length | mm | 2955/3470 |
| Width | mm | 1320 |
| Height | mm | 1535/2210 |
| Discharge height | mm | 2210 |
| Introduction height | mm | 665 |
| Hopper size | mm | 1009 x 705 |
| Weight: NET | kg | 750 |
* Input material - Data depending on the kind of material and working conditions.
| TERMS | ||
|---|---|---|
| Product origin | Made in Italy | |
| Warranty | The warranty is the one established by law and it's valid just upon submission of the machine's sales document. | |
| Delivery - Original spare parts | Usually available, 45 days max. (from order date) | |
| Identification - SCIP number (link) | https://echa.europa.eu/it/scip-database Instructions -SIP number (PDF) |
|
The products are subject to technical evolution and this website may not be fully updated.
The data in the tables, the photos and pictures have to be considered informative and not binding.
The data in the tables, the photos and pictures have to be considered informative and not binding.
